7 Viewing Transaction Details

This topic describes how to display a list of transactions using the View Transactions screen, and how to drill down deeper into the transaction details.

To display the View Transactions screen:

From the main Smart Client menu, select Card Activity > View Transactions.

The View Transactions screen appears.

For information about how to search for transactions, see Searching for a Transaction.

7.1 Understanding the Display

The View Transactions screen provides a wealth of information about each transaction and the ability to drill down into the details (described later). This section explains what information is displayed and the colour-coding used to highlight the different types of transaction.

The results of your search appear in colour-coded rows. The colours are explained in the key at the bottom of the screen. When an option at the top of the screen is selected, only those types of transactions are displayed, for example, Auth Not Cleared, Declined.

Use the scroll bar at the bottom of the screen to view all the fields.

You can sort the list (for example, by date or transaction type) by clicking on the column headers and using the up and down arrows to sort in ascending or descending order.

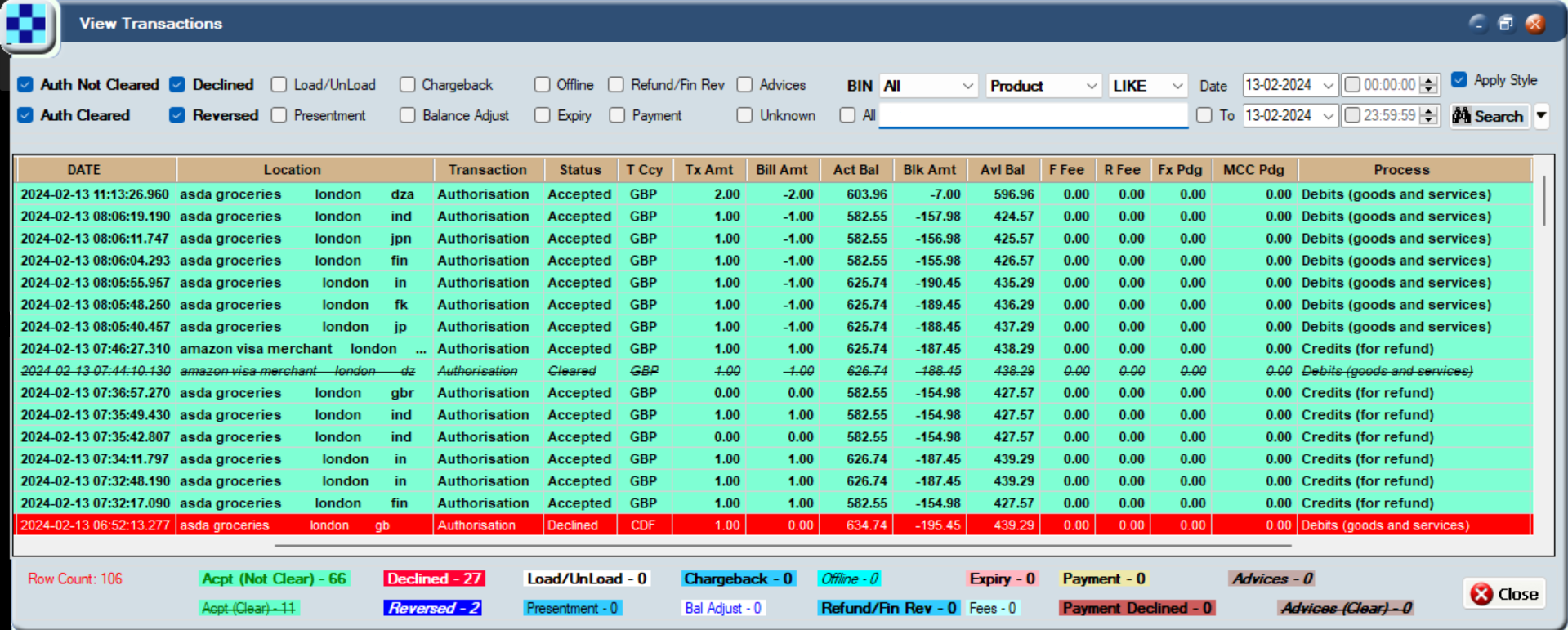

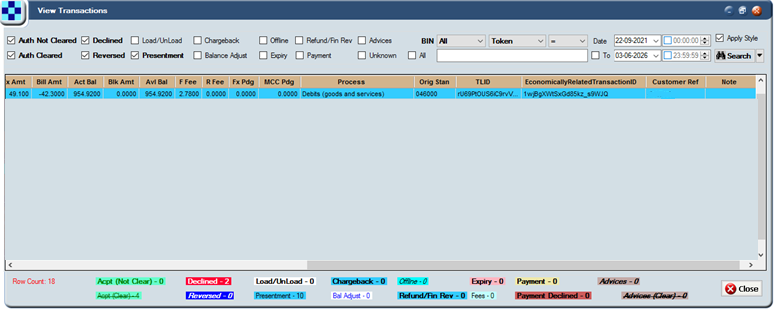

Figure 18: The View Transactions screen

The following information is shown for each transaction:

the information displayed depends on the type of transaction, for example, more information is shown about authorisations than about presentments.

Column	Description
Token	Unique Thredd 9-digit token assigned to this card.
Scheme	The scheme name configured by Thredd Implementations during set up.
Product	Specific card network’s product.
Date	Date and time the transaction occurred. The time relates to Thredd time, for example, GMT.
Location	Location provided by the merchant.
Transaction	Type of transaction, such as authorisation, balance adjustment, presentment, and auth reversal.
Status	Transaction status, such as Settled.
T Ccy	Transaction currency.
Tx Amt	Transaction amount (in the transaction currency).
Bill Amt	Bill amount (in the currency of the card).
Act Bal	Actual balance after the transaction.
Blk Amt	Blocked amount (pending payments) after the transaction.
Avl Bal	Available balance after the transaction.
F Fee	Fixed fees levied against the transaction.
R Fee	Rate-based fee. Fees levied against the transaction based on a percentage charge.
Fx Pdg	Financial padding (to allow for currency fluctuations)
MCC Pdg	Financial padding applied to transactions in specific MCCs (typically used for hotels and rental cars where cardholders might be charged a little more than authorised for).
Process	Transaction processing code, for example, recurring fees, balance inquiry.
Orig Stan	6-digit system trace audit number (STAN) used to link the authorisation and the presentment.
Customer ref	An alphanumeric identifier unique to the cardholder which is different to the Thredd token. This is defined in the client's web service calls.
Notes	Information about the transaction, such as why a decline has happened. The Notes field is a useful source of information about a transaction, particularly for declines, as it can point you to what has happened. For example, in the case of a decline, an incorrect PIN or the transaction exceeding the maximum permitted limit. Scroll right on the View Transactions screen to display it.

7.2 Examining a Transaction in Detail

This section explains how to drill down deeper into the details of a specific transaction.

To display more details about a particular transaction:

Highlight the transaction in the View Transactions screen, then right-click.
Select More Details from the drop-down menu.

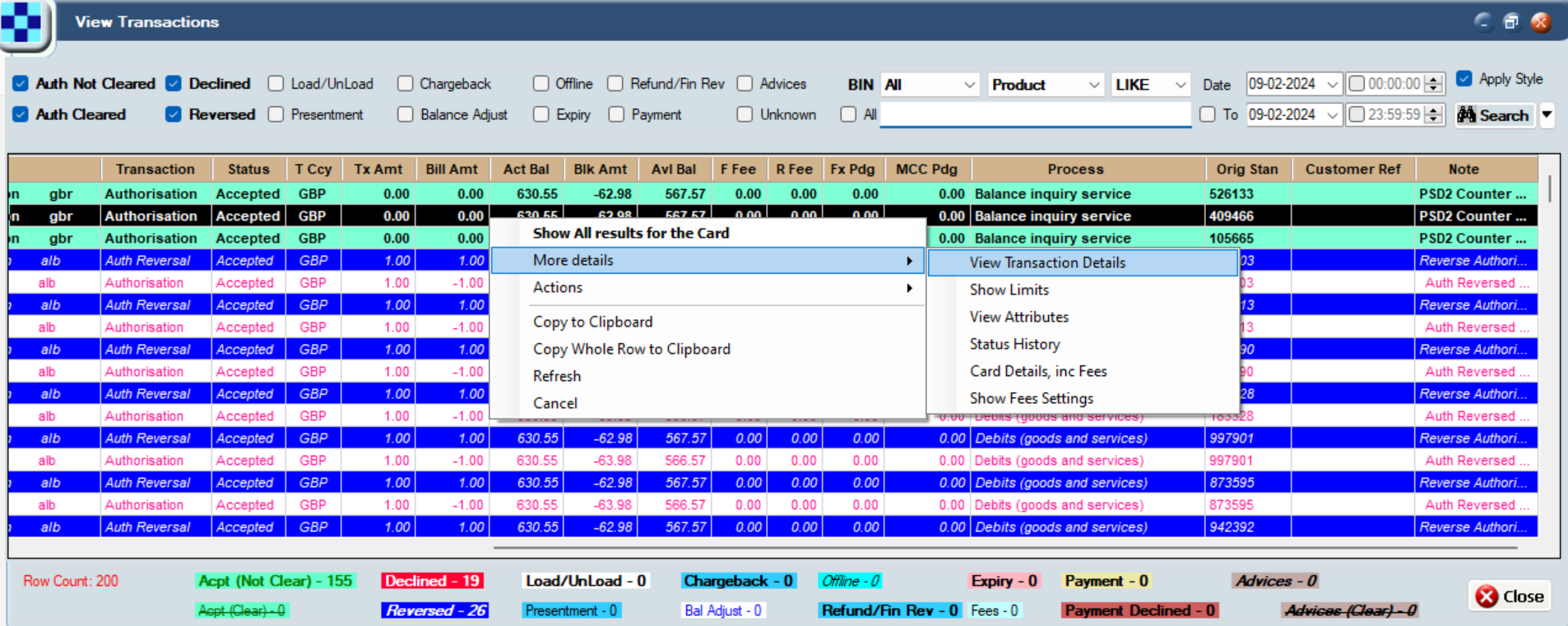

Figure 19: Further options available in the View Transactions screen

Use the Copy to Clipboard and Copy Whole Row to Clipboard options to copy information about the transaction. This is useful, for example, to copy a token number across screens.
Choose View Transaction Details to display the Transaction Details screen. The Transaction Details screen shows detailed information about the transaction, including the transaction date, status, card acceptor name location, transaction amount and fees. The example below shows details for an authorisation:

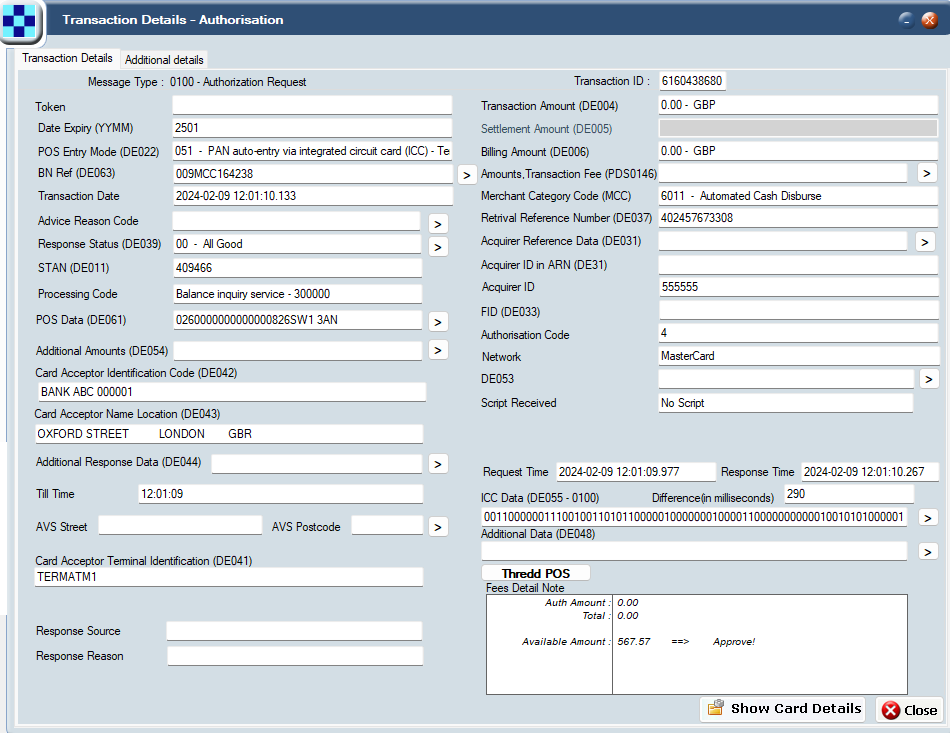

Figure 20: Transaction Details screen

The details shown depend on the type of transaction, for example, fields relating to presentments, such as Settlement Amount (DE005), are blank for authorisations. The available options are explained in more details in the following section.

About the Transaction Details screen

The following section explains the main transaction information shown:

DE000—DE999 refers to the Data Element number (for example, DE004 = Transaction Amount). For a full list of Data Elements and their definitions, refer to the Mastercard Customer Interface Specification orVisa Base manual.
Click the arrow available next to some fields to display more information, for example, POS data (DE061).

The available fields depends on the transaction source network and transaction type.

Field	Description
Message Type	The type of transaction, such as an authorisation or presentment.
Token	The unique token number associated with the transaction.
Date Expiry	The expiry date provided at the time of the transaction (useful to check in case the cardholder has entered an incorrect expiry date).
POS entry mode (DE022)	How the transaction was created, for example, contactless at a machine, ecommerce, online, ATM. ICC indicates the card was physically inserted into a machine and the PIN entered.
Transaction Date	The date of the transaction. Format YYYY-MM-DD HH:MM:SS:MS.
Advice Reason Code	Mastercard Authorisation Advice Reason Code. Explains why Mastercard Stand-In processing (STIP) occurred or why an advice was created. Note: This field will only be present for transactions received by Thredd from Mastercard.
Visa Response Code (DE63)	Visa’s Response Data, exactly as provided from Visa to Thredd. Note: This field will only be present for transactions received by Thredd from Visa.
Response status (DE039)	The status sent back to the merchant, for example, 05 - do not honour. Click the arrow next to this field to see more information.
STAN (DE011)	System Trace Audit Number. This links the authorisation and presentment (note this number is not unique).
Processing code	Indicates the type of transaction, for example, a debit.
POS data (DE061)	Useful information about the machine on which the transaction took place. Click the arrow next to this field to see more information, for example, if the card is in card capture status.
Additional Amounts (DE054)	Contains additional amount information for the transaction, if relevant. For example, for purchase with cashback transactions, the additional amounts field will be present with the cashback amount.
Card Acceptor Identification Code (DE042)	Code relating to the specific Point of Sale (POS) terminal.
Card Acceptor Name Location (DE043)	Merchant’s details.
Additional Response Data (DE044)	Visa’s Additional Response Data, exactly as provided from Visa to Thredd. This will only be present for transactions received by Thredd from Visa Base1, if DE44 was present. It provides information on Visa’s validation checks of data in the message. This will only be set for Visa online authorisation transactions.
Till Time	Time provided by the merchant (can be incorrect but matches what is on the receipt).
Card Acceptor Terminal Identification (DE041)	Uniquely identifies the terminal which accepted the card. Always present if the card data was read by a terminal.
Response Source	Indicates which system sent the 0110 or 0210 response to the terminal. Normally present only for some Authorisation advices and Authorisation reversals.
Response Reason	Indicates the reason why the Response Source sent a response to the terminal. Normally present only for some Authorisation advices and Authorisation reversals.
Transaction ID	Identifier for tracing a specific transaction and narrowing a search. This a unique identifier generated by Thredd to help identify and search for transaction in the Thredd platform.
Transaction Amount (DE004)	Transaction amount and currency.
Settlement Amount (DE005)	Settlement amount and currency.
Billing Amount (DE006)	Amount applied to the account in the currency of the card.
Amounts, Transaction Fee (PDS0146)	The fee charged (for example, by the acquirer) for transaction activity in the transaction currency code. This field is only applicable to presentments.
Merchant Category Code (MCC)	Code that describes a merchant's primary business activities.
Retrieval Reference Number (DE037)	A unique reference to the transaction assigned by the acquirer. All messages related to the same transaction (reversals, presentments, chargebacks) should have the same RRN; however, this may not be enforced.
Acquirer Reference Data (DE031)	Acquirer Reference Number/Data. ISO 8583 field 31. The acquirer reference number exists for clearing messages only (Financial advices/notifications, and Chargeback advices/notifications (and reversals of)).
Acquirer ID in ARN (DE31)	Acquirer ID found in the Acquirer Reference Number (ARN).
Acquirer ID	Acquiring Bank ID as assigned by the network. Note that the format differs depending on whether this is an Authorisation or a Financial type message. For Authorisation messages: 2 digits length of Acquirer ID (01 to 09) Acquirer ID For Financial messages: 6 digit Acquirer ID (possibly with leading zeros)
FID (DE033)	Identifies the acquiring institution forwarding a Request or Advice message.
Authorisation Code	Authorisation code generated by Thredd for approved and declined authorisation requests.
Network	The network that processed the transaction.
DE053	The Security-Related Control Information provides specific information about PIN block encoding and PIN data encryption in processing PINs entered at the point of interaction.
Request Time	The time when Thredd receives this authorisation, in the local time zone of the Thredd servers.
Response Time	The time when Thredd sends the response (the difference between the request and response times is shown below in milliseconds), in the local time zone of the Thredd servers. Note that the response time in milliseconds is the time for the entire transaction to complete across all parties.
ICC Data (DE055 - 0100)	Data from the card’s chip. Click the arrow next to this field to see more information, for example, you can check whether the online and offline PINs were verified when making a transaction.
Difference (in milliseconds)	The difference, in milliseconds, between the request time and the response time of the transaction.
Additional data (DE048)	Information about 3D Secure (payer authentication) for online transactions. Click the arrow next to this field to see more information. For more information, see Viewing 3D Secure details.
DE034	The Primary Account Number (PAN), Extended, identifies a customer account or relationship. This is only used when the PAN begins with a 59 BIN.
Fees Detail Note	Shows any fees applied to this transaction.

7.2.1 Viewing all transactions for the card

To display a list of all the transactions for the specified token:

Highlight the transaction in the View Transactions screen, then right-click and choose Show All results for the Card.

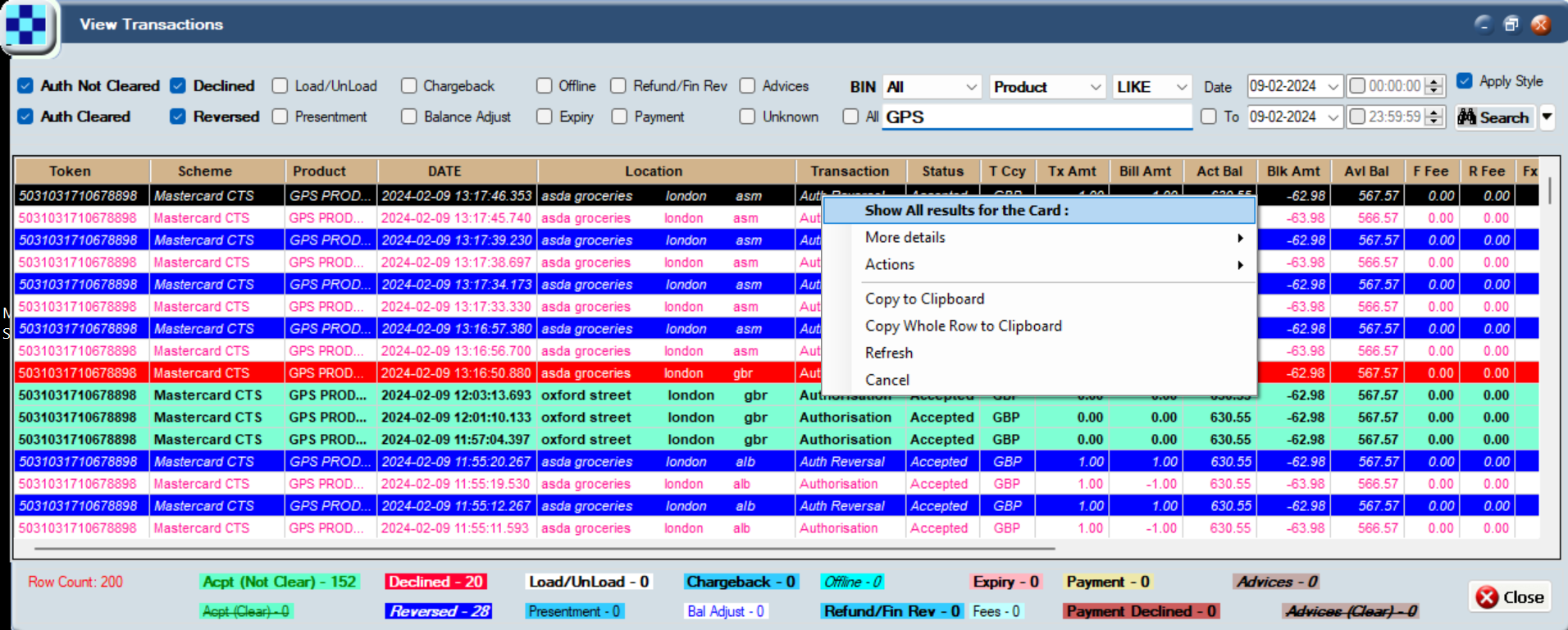

Figure 21: Show All results for the Card menu option

You can also double-click on a transaction to display all the results.
Review all the activity for the specified card in the View Transaction screen.

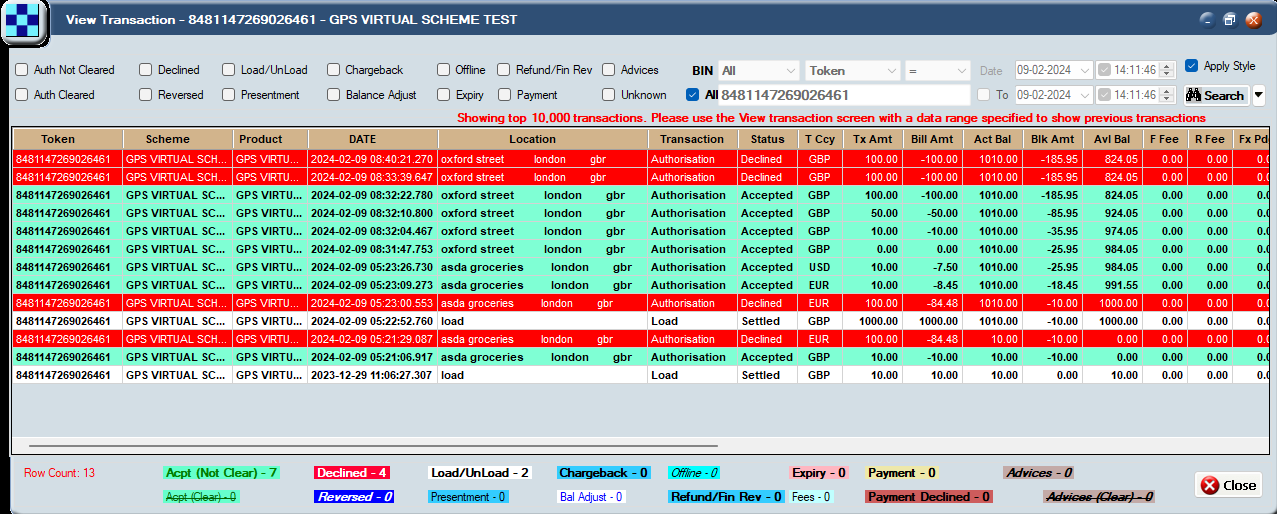

Figure 22: View all activity for the selected card

7.2.2 Viewing 3D Secure details

3D Secure is a set of online protocols created by the different card networks to improve the level of security in card-not-present (CNP) transactions. Branded with different names, including 3D Secure, Mastercard ID Check, Verified by Visa, and 3DS, 3D Secure provides additional protection when making ecommerce transactions. By default, authentication is biometric (‘in client app’ authentication), with fallback authentication set to 'OTPSMS', where a one-time passcode (OTP) is sent to the cardholder via SMS. For more information, see the 3D Secure Guide RDX and Biometric or In-App Authentication Guide.

Viewing Mastercard 3D Secure transactions

To see information about a Mastercard 3D Secure transaction:

In the View Transactions screen, right click the transaction and select More Details > View Transaction Details.
In the Transaction Details screen, inspect the Additional Data (DE048) field (bottom right).

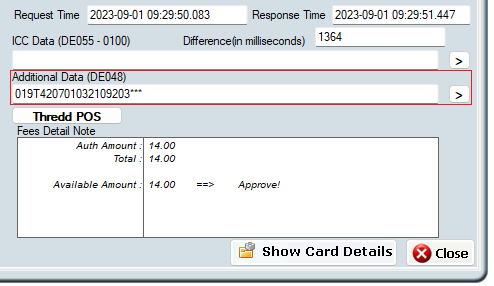

Figure 23: Additional Data (DE048) field on the Transaction Details screen
Click the arrow to expand the information displayed. For example:

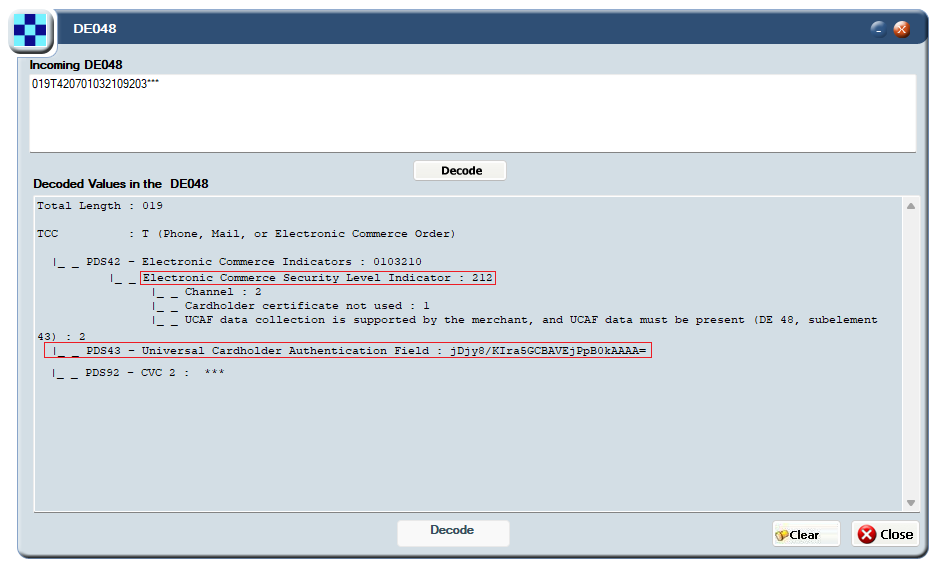

Figure 24: Decoded values in the DE048 field on the Transaction Details screen

- PDS42 contains Electronic Commerce Indicators (ECI) results.
- For non-3D Secure transactions such as eCommerce merchants who are not enrolled or have disabled the checks, these display as ‘UCAF data collection is not supported by the Merchant’.
- PDS43 contains the Accountholder Authentication Value (AAV). The results are provided by the 3D Secure Provider to the Merchant/Acquirer and are submitted within the Authorisation request.

External Host Interface (EHI) data also provides 3D Secure Authentication results containing AAV data, for example: <cavv>jDjy8/KIra5GCBAVEjPpB0kAAAA=</cavv>. For more information, see the External Host Interface (EHI) Guide.

Viewing Visa 3D Secure transactions

To see information about a Visa 3D Secure transaction:

In the View Transactions screen, right click the transaction and select More Details > View Transaction Details.
In the Transaction Details screen, inspect the Additional Response Data (DE044) field (left side of the screen).

Figure 25: Additional Response Data (DE044) field on the Transaction Details screen
Click the arrow to expand the information displayed. For example:

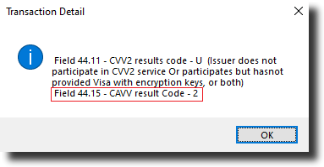

Figure 26: Transaction Detail message displayed when the Additional Response Data (DE044) field is expanded.

Field 44.15 — Thredd Received Cardholder Authentication Verification Value (CAVV)

EHI data also provides 3D Secure Authentication results containing AAV data, for example: <cavv>AAABBBQ5KVcglogDBDkpEFQKZyo==</cavv>. For more information, see the External Host Interface (EHI) Guide.
